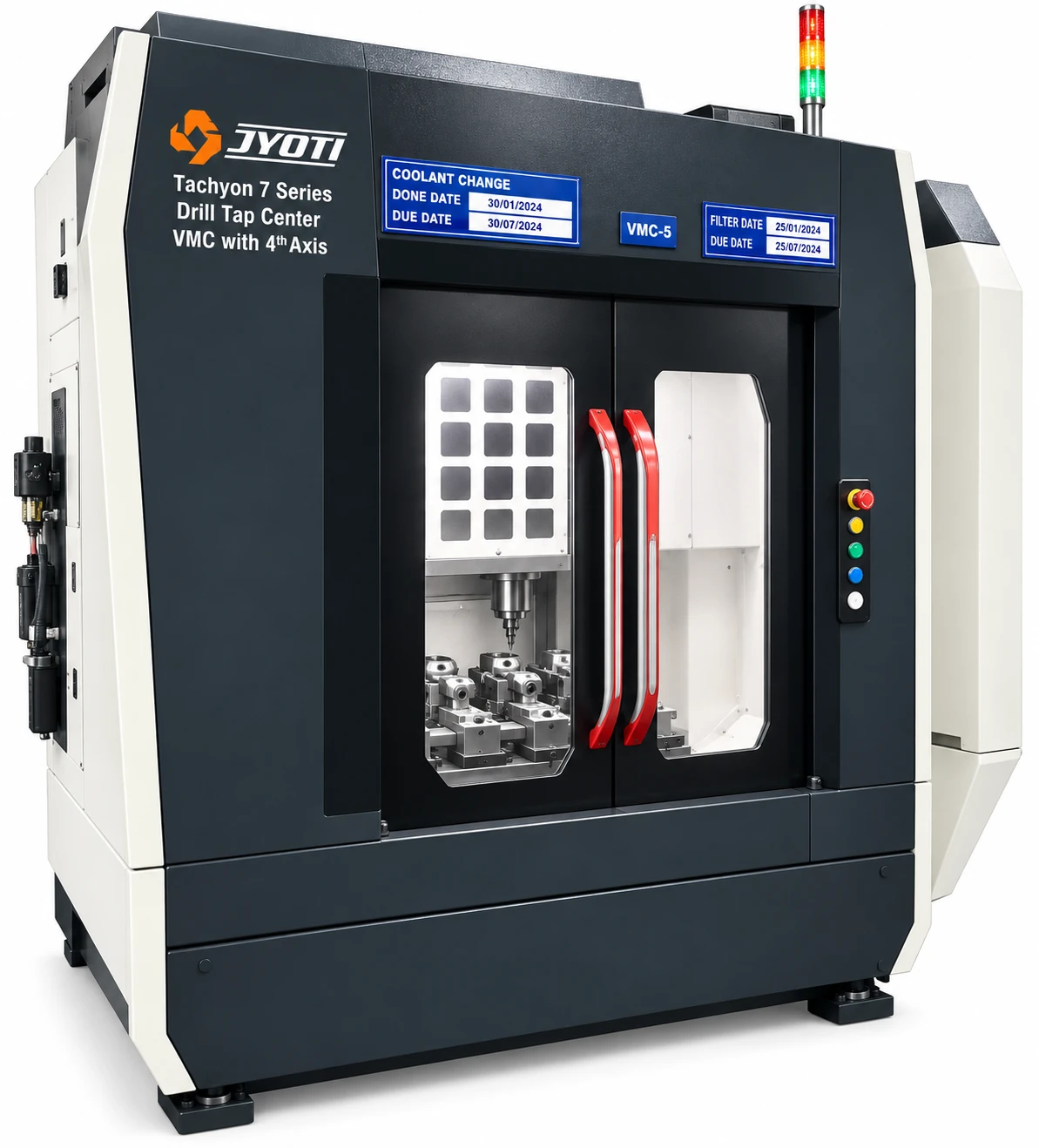

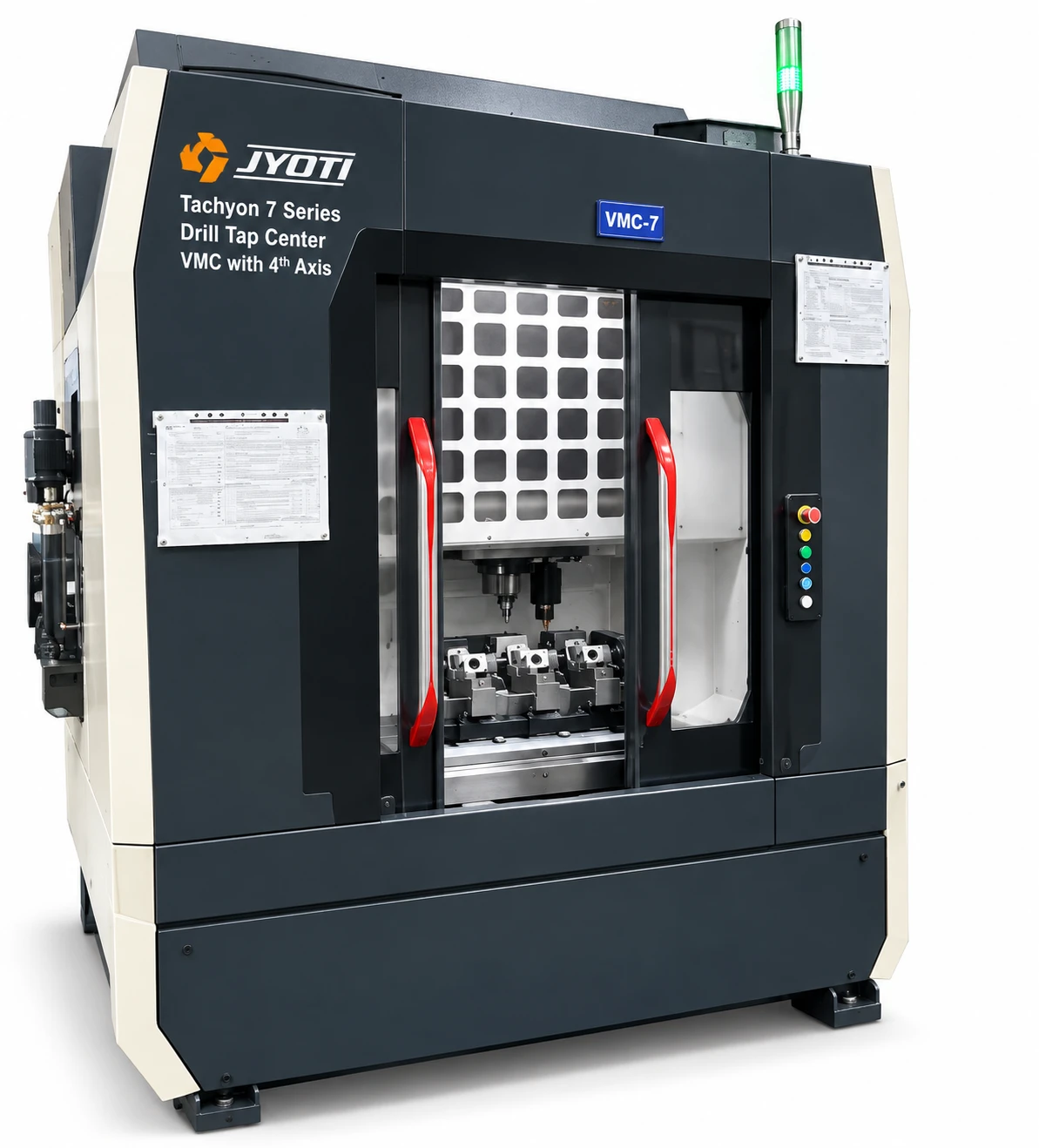

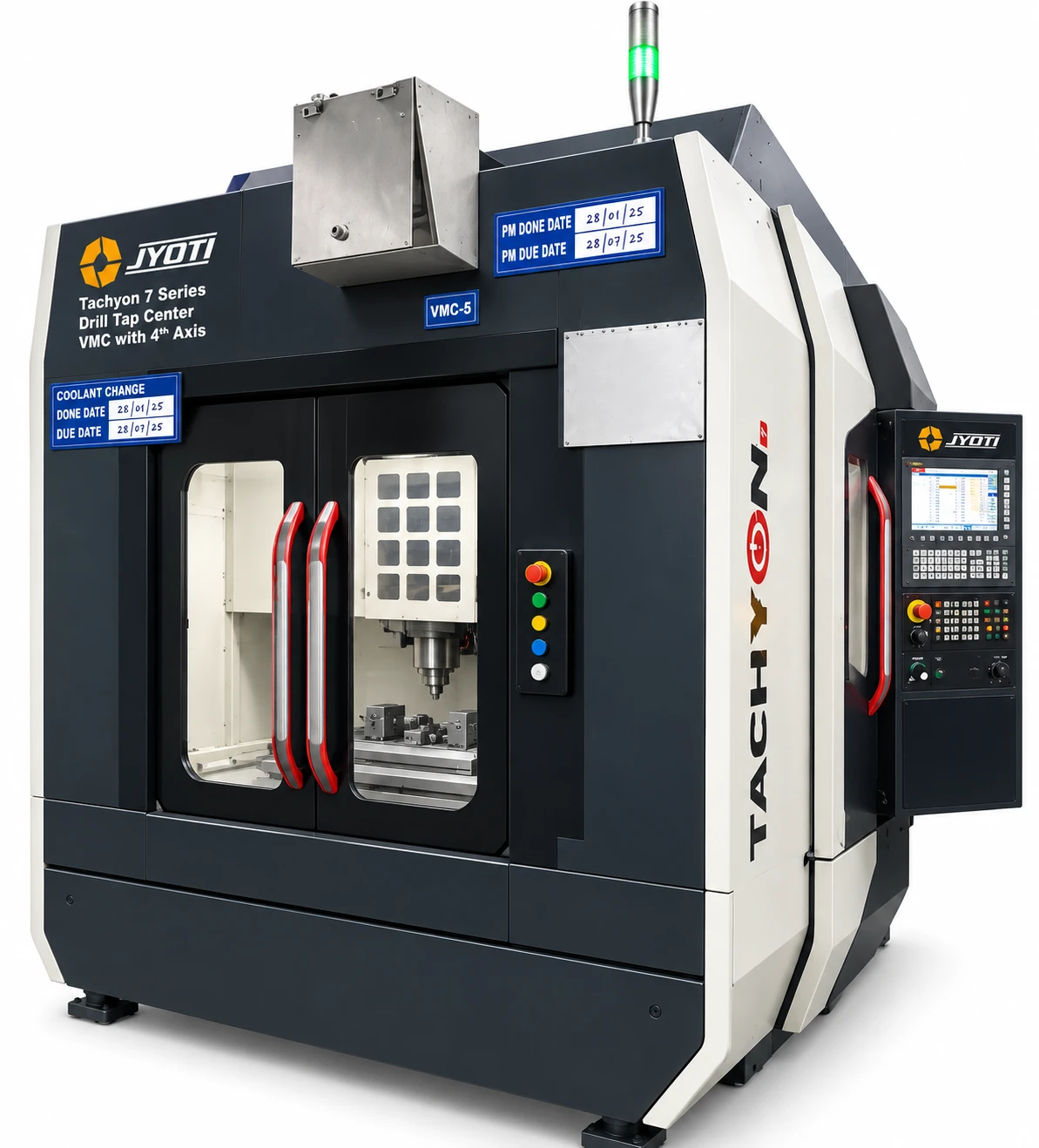

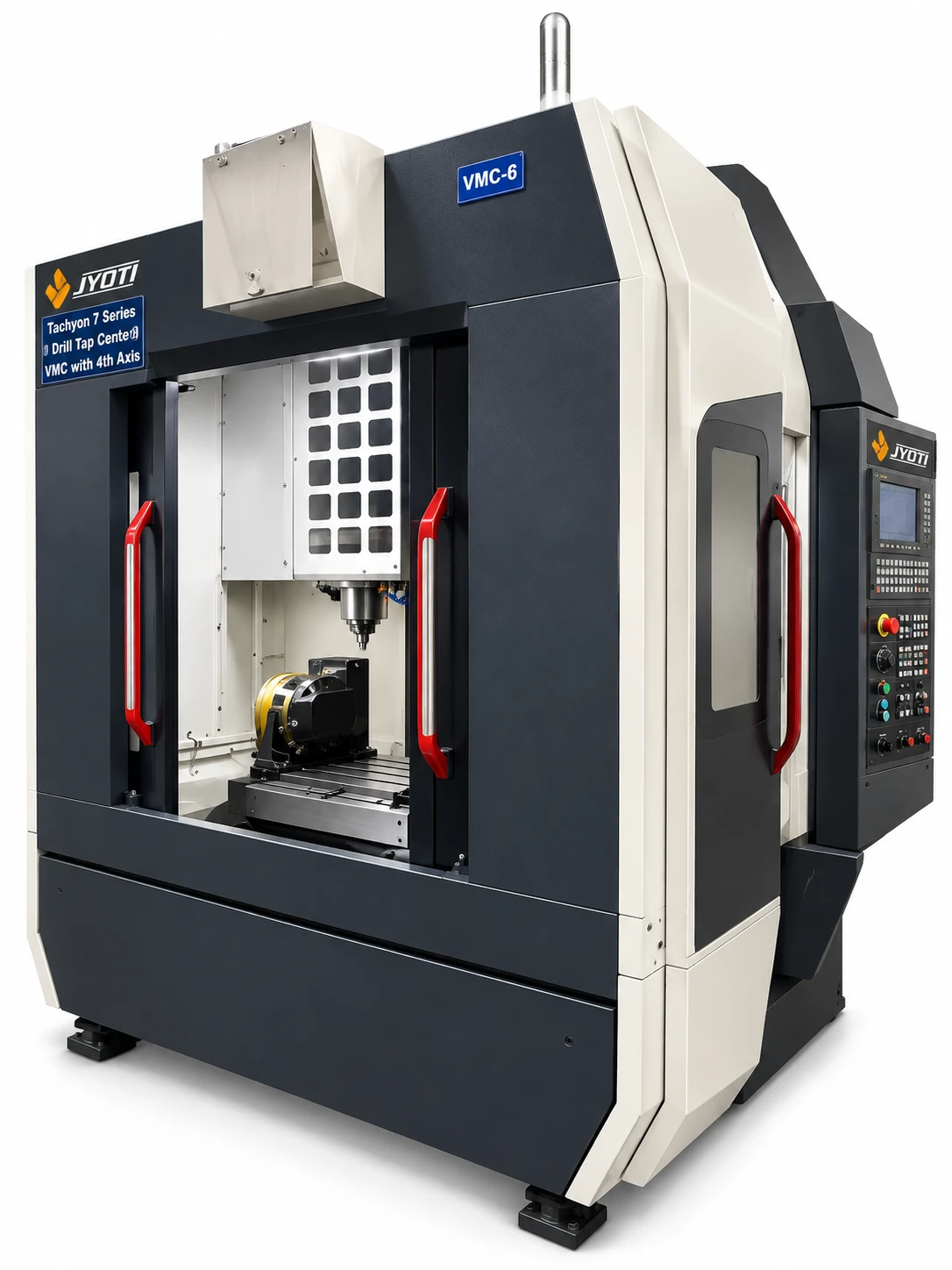

Model: Jyoti Tachyon 7
Year: Dec 2019, Dec 2019, Jan 2020 & Sept 2022
Machine Type: High-Speed Drill Tap Center VMC
4th Axis: Ready
Table Size: 800 × 400 mm
X-Axis Travel: 750 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 450 mm
Spindle Speed: 10,000 RPM
Spindle Motor Power: 20.4 / 4.8 kW (Max./Cont.)
Spindle Nose: BT-30 (BBT 30)
ATC Capacity: 16 Tools
Max. Tool Diameter: 80 mm
Max. Tool Weight: 3 kg
Max. Tool Length: 200 mm
Rapid Traverse: X 70 / Y 60 / Z 60 m/min
Positioning Accuracy: 0.010 mm
Repeatability: 0.005 mm
Machine Weight: Approx. 4,800 kg
Machine Dimensions: 3480 × 1740 × 2630 mm
Pallet Changer: Double Pallet
Pallet Size: 800 × 400 mm
Max. Workpiece Weight: 300 × 2 kg
Pallet Change Time: Approx. 12–15 sec
