Axis Travels and Caps
X-Axis Travel: 61 inches (1,549 mm)
Y-Axis Travel: 47.8 inches (1,214 mm)
Z-Axis Travel: 47.2 inches (1,198 mm)
A-Axis Spindle Tilt: +60 to -120 degrees
B-Axis Pallet Rotation: 360,000 positions (Full contouring)
Spindle and Performance
Spindle Speed: Up to 20,000–24,000 RPM (high-speed config)
Spindle Power: 40 HP
Spindle Taper: HSK A63
Rapid Traverse Rate: 945 IPM
Table and Tool Changer
Pallet Dimensions: 31.5" x 31.5" (800 mm x 800 mm)
Max Table Load: 4,500 to 4,847 lbs

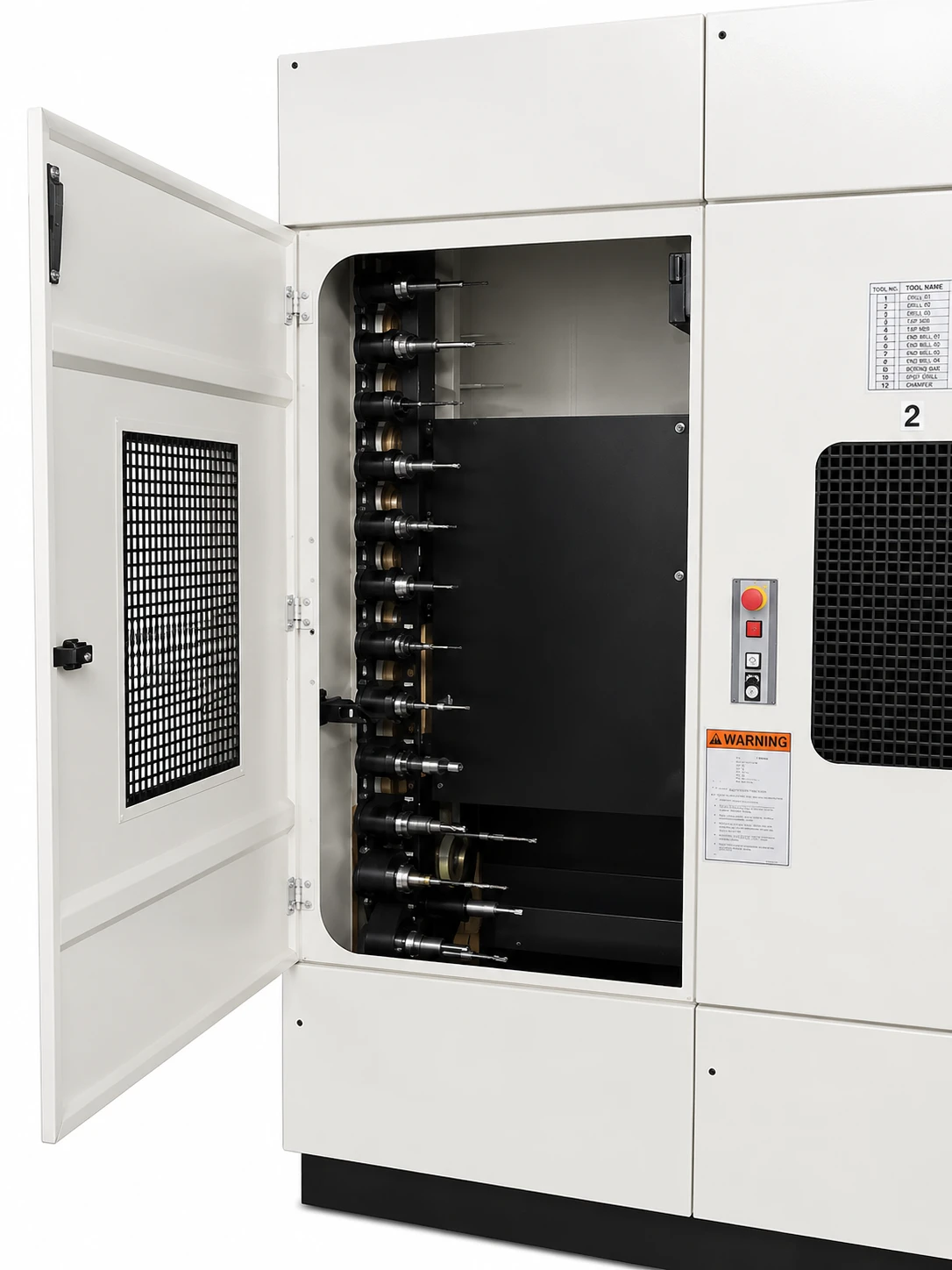

Tool Magazine Capacity: 90 to 120 tool positions

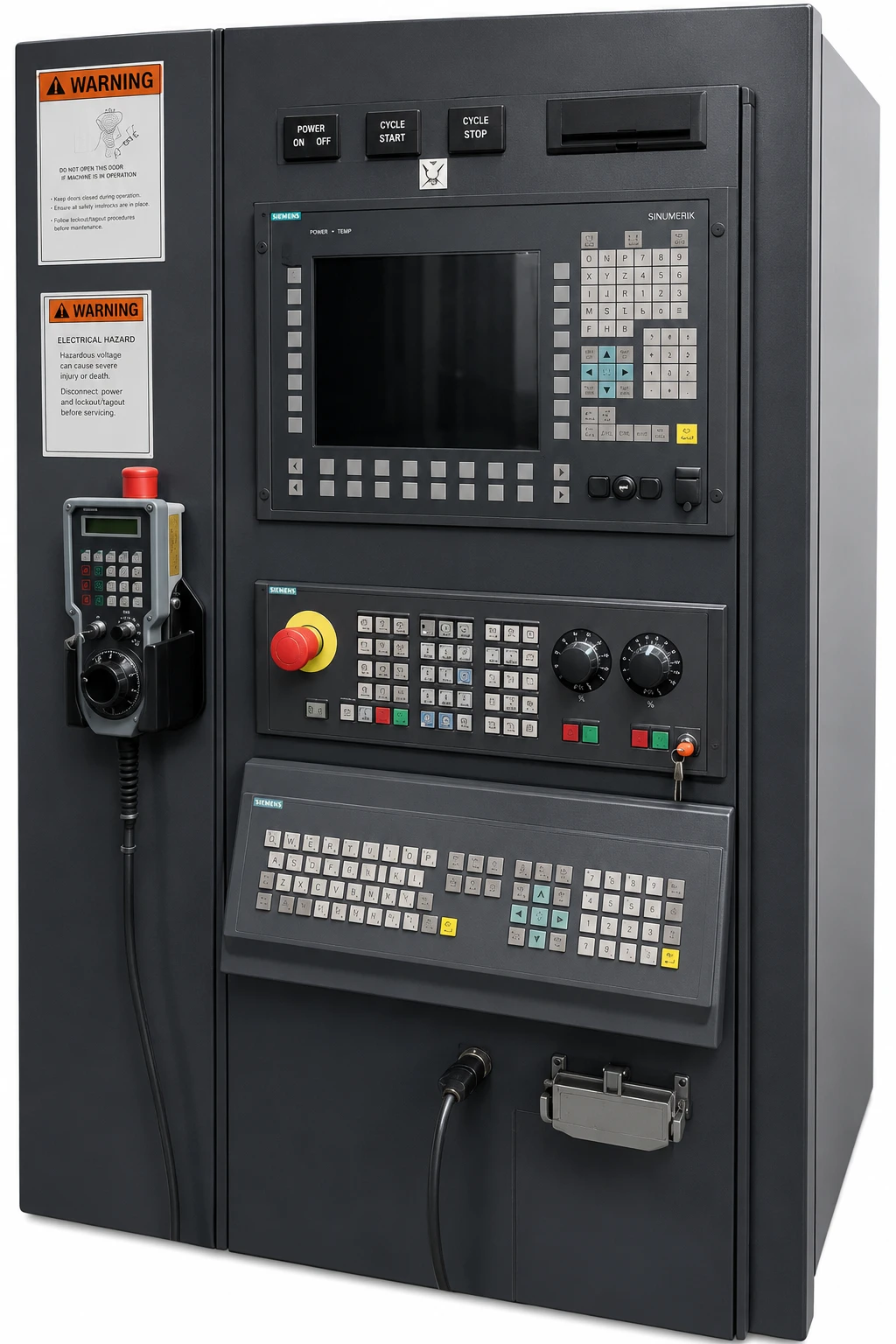

Controller: Siemens Acramatic (2100 or 950 series)
Machine Location: Korea
