Axis Travels and Feed Rates
X-axis travel: 750 mm
Y-axis travel: 600 mm
Z-axis travel: 560 mm
Rapid traverse (X/Y/Z): 90 m/min
Acceleration: > 2 g in linear axes
Spindle and Tool System
Spindle speed: Up to 28,000 rpm (standard HSK-A63) or optional 42,000 rpm (HSK-E50)
Spindle power: 55 / 43.5 kW (40%/100% DC)
Tool taper: HSK-A63
Tool magazine capacity: 30 stations standard (up to 120/180 optional)
Table and Workpiece

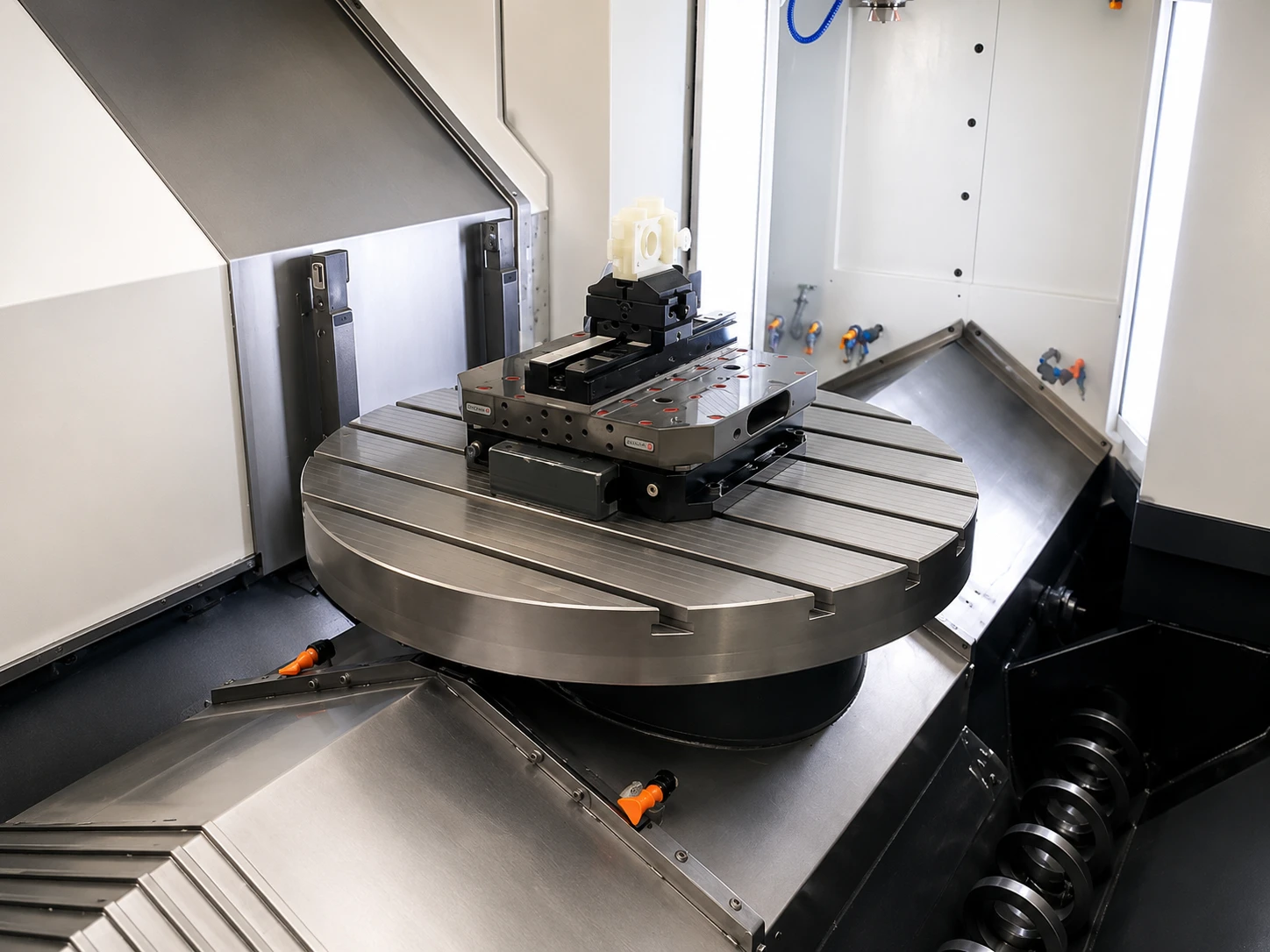

Table dimensions: ø 750 mm NC rotary table
Maximum table load: 800 kg to 1,000 kg depending on configuration
Machine Location: Korea
